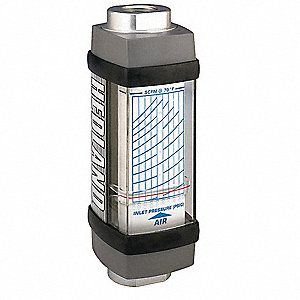

HEDLAND FLOWMETER F. AIR

HEDLAND FLOWMETER – type VA flowmeters that are easy to install and read off.

Can be installed in any position
Simple and readable linear scale
Temperature up to 116 °C
Relatively insensitive to shock and vibration

Click here to view data sheet with an overview of all models :

OPTIONS

REVERSIBLE FLOW

Flow can go back in the opposite direction.

OTHER MATERIAL TYPES

BRASS
STAINLESS STEEL

OTHER FITTING TYPES

NPT(F)
SAE

DIGITAL VA METER

HEDLAND OVERVIEW

SIZE	Link	FLOW ( L/SEC )	MAX PRESSURE	CONNECTION	MATERIAL	APPLICATION	LENGTH [mm]	WIDTH [mm]	DEPTH [mm]
1/2"	H672x-025	2.0 - 12.0	103 bar	1/2"BSP(F)	Aluminum, Brass, Stainless Steel	AIR ( & compressed gasses )	168	53	61
1/2"	H672x-050	3.0 - 22.0	103 bar	1/2"BSP(F)	Aluminum, Brass, Stainless Steel	AIR ( & compressed gasses )	168	53	61
1/2"	H672x-100	5.0 - 47.0	103 bar	1/2"BSP(F)	Aluminum, Brass, Stainless Steel	AIR ( & compressed gasses )	168	53	61
1/2"	H672x-150	7.0 - 70.0	103 bar	1/2"BSP(F)	Aluminum, Brass, Stainless Steel	AIR ( & compressed gasses )	168	53	61
3/4"	H772x-025	1.5 - 11.5	103 bar	3/4"BSP(F)	Aluminum, Brass, Stainless Steel	AIR ( & compressed gasses )	183	63	72
3/4"	H772x-050	2.0 - 23.0	103 bar	3/4"BSP(F)	Aluminum, Brass, Stainless Steel	AIR ( & compressed gasses )	183	63	72
3/4"	H772x-100	5.0 - 47.5	103 bar	3/4"BSP(F)	Aluminum, Brass, Stainless Steel	AIR ( & compressed gasses )	183	63	72
3/4"	H772x-150	7.0 - 70.0	103 bar	3/4"BSP(F)	Aluminum, Brass, Stainless Steel	AIR ( & compressed gasses )	183	63	72
3/4"	H772x-250	10.0 - 118.0	103 bar	3/4"BSP(F)	Aluminum, Brass, Stainless Steel	AIR ( & compressed gasses )	183	63	72
1"	H792x-025	1.5 - 11.5	103 bar	1"BSP(F)	Aluminum, Brass, Stainless Steel	AIR ( & compressed gasses )	183	63	72
1"	H792x-050	2.0 - 23.0	103 bar	1"BSP(F)	Aluminum, Brass, Stainless Steel	AIR ( & compressed gasses )	183	63	72
1"	H792x-100	5.0 - 47.5	103 bar	1"BSP(F)	Aluminum, Brass, Stainless Steel	AIR ( & compressed gasses )	183	63	72
1"	H792x-150	7.0 - 70.0	103 bar	1"BSP(F)	Aluminum, Brass, Stainless Steel	AIR ( & compressed gasses )	183	63	72
1"	H792x-250	10.0 - 118.0	103 bar	1"BSP(F)	Aluminum, Brass, Stainless Steel	AIR ( & compressed gasses )	183	63	72
1 1/4"	H872x-200	10.0 - 95.0	103 bar	1 1/4"BSP(F)	Aluminum, Brass, Stainless Steel	AIR ( & compressed gasses )	310	105	120
1 1/4"	H872x-400	20.0 - 180.0	103 bar	1 1/4"BSP(F)	Aluminum, Brass, Stainless Steel	AIR ( & compressed gasses )	310	105	120
1 1/4"	H872x-600	30.0 - 280.0	103 bar	1 1/4"BSP(F)	Aluminum, Brass, Stainless Steel	AIR ( & compressed gasses )	310	105	120
1 1/4"	H872x-800	50.0 - 350.0	103 bar	1 1/4"BSP(F)	Aluminum, Brass, Stainless Steel	AIR ( & compressed gasses )	310	105	120
1 1/4"	H872x-999	50.0 - 475.0	103 bar	1 1/4"BSP(F)	Aluminum, Brass, Stainless Steel	AIR ( & compressed gasses )	310	105	120

APPLICATIONS

Hydraulic aggregates
Flushing units
Boats
Service vehicles
