DYNASET HK

PISTON COMPRESSOR

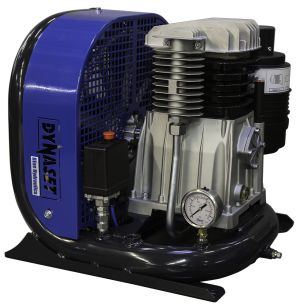

Dynaset HK hydraulic driven piston compressors

  • Always ready for use
  • Very compact (Much smaller than diesel-powered compressors with the same power)
  • Models from 450 l/min to 1000 l/min
  • Easy to use and install
  • Integrated tank (reservoir) in frame

Piston compressors are specially designed for non-continuous use (short periods at a time).

Model IDLinkMax FlowMax PressureDimensionsWeightHyd. FlowHyd. Pressure
HK 450Dynaset HK 0450 Compressor0450 lpm8 bar530 x 430 x 460 (mm)35 kg14 lpm 210 Bar
HK 1000Dynaset HK 1000 Compressor1000 lpm8 bar725 x 490 x 600 (mm)80 kg35 lpm230 Bar

OPTIONS

PNEUMATIC ON/OFF ( -PNE )

Automatic pressure relief  between preset pressure settings. Compressed air will circulate internally in the compressor.

ELECTRIC PRESSURE SWITCH ( -E )

Electric pressure switch to automatically switch the compressor on and off when there is no consumption of compressed air

ELECTRIC ON/OFF SWITCH ( -SV )

Automatic pressure relief with a solenoid valve where the hydraulic supply to the compressor is cut off when there is no consumption of compressed air

CYCLONE FILTER ( -Y)

For extra filtration in extremely dirty environments

COMPRESSED AIR TANK ( -T )

Additional compressed air tank for storing compressed air.

FLOW LIMITER ( -FL )

To limit the maximum hydraulic flow into the hydraulic motor.

HYDRAULIC INSTALLATION VALVES

Dynaset installation valves to make the hydraulic installation as easy as possible.

STAINLESS TANK / FRAME ( -SS)

For better corrosion protection in corrosive environments

APPLICATIONS

  • Operation of compressed air tools
  • Filling car tires
  • Service car
  • Air cleaning
  • Repair work

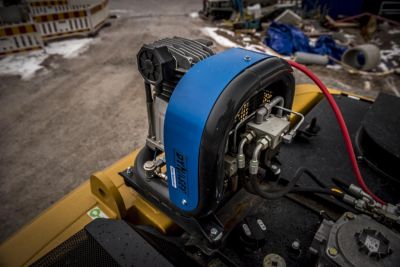

Installation on Caterpillar excavator

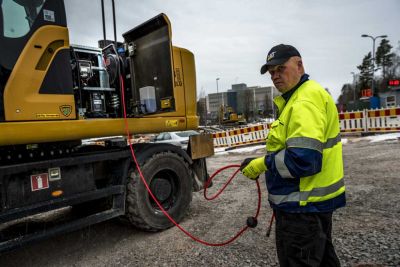

Compressed air from excavator

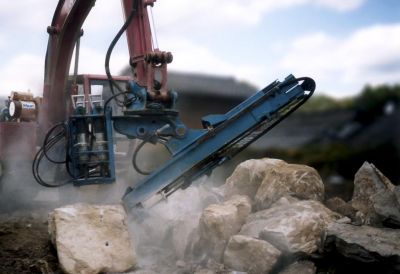

Drilling rig
